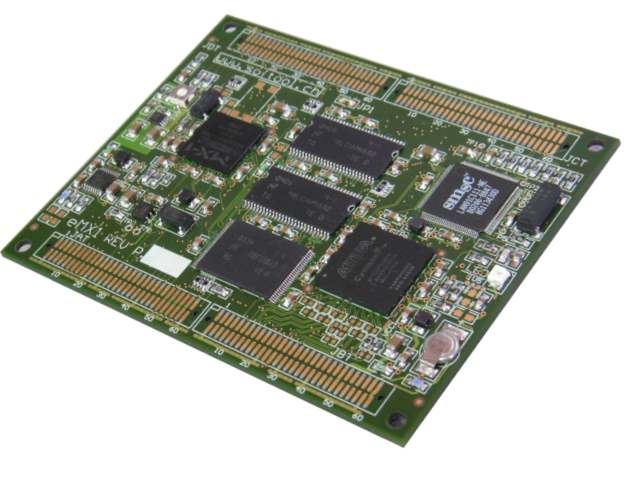

CrystalBall Module

---

The CrystalBall module has been conceived for industrial applications  requiring concurrent acquisition and processing of graphical images, communication and numeric process control (NPC).

Features:

• Freescale MC9328MX1-200MHz CPU
• 64 MB (16Mx32) SDRAM
• 16 MB (8Mx16) NOR Flash
• 128 KB Static RAM (i.MX1 internal)
• FPGA Altera Cyclone EP1C6, 5'980 Logical Elements)
• SMC91C111 10/100Mbit Ethernet (Optional)
• LCD Controller up to VGA resolution 640 x 480
• CMOS Image sensor interface (Video port)
• Three Universal Asynchronous Receiver/Transmitters (UART 1, 2 and 3)
• Serial Peripheral Interface (SPI)
• Two Synchronous Serial Interfaces and Inter-IC Sound (SSI/I2S) Module
• I²C Bus Module
• 1-wire Bus controller
• USB Device with integrated physical layer
• Bluetooth Accelerator (BTA)
• MMC/SD cards and Memory Stick® Host Controller
• SmartCard Interface Module (SIM)
• Real-Time Clock (RTC) 1-wire DS4215
• Pulse-Width Modulation for sound generation
• Direct Memory Access Controller (DMAC)
• JTAG for devices programming and software debug
• Configurable Expansion Interface (240 pin)
• Modules are stackable for performances scaling
• Single 3.15V power supply
• 80mm x 100mm (3.15” x 3.8”) size

A complete Linux suite (bootloader, kernel, device drivers) for the CrystalBall module is available here.

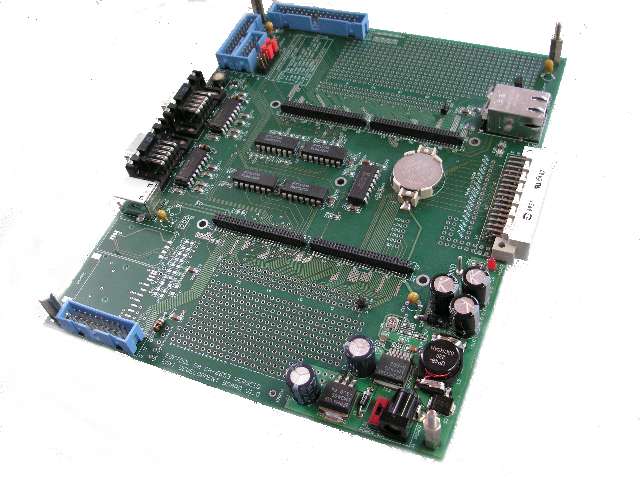

Evaluation Board

---

 Features:

• Support for CrystalBall module
• 10/100 Ethernet port
• USB port
• 2 x RS232 ports on Sub-D9
• 1 SD/MMC cards socket
• 1 MemoryStick socket
• 1 SIM card socket
• CMOS Image sensor interface port
• LCD + Touch Panel interface port
• Bluetooth port
• JTAG port
• ByteBlaster port
• 2 wide prototyping areas
• Single 12V power supply
• 160mm x 200mm (6.3” x 7.9”) size
